Product Overview

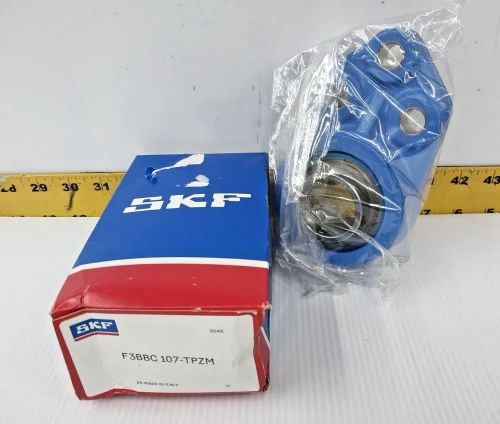

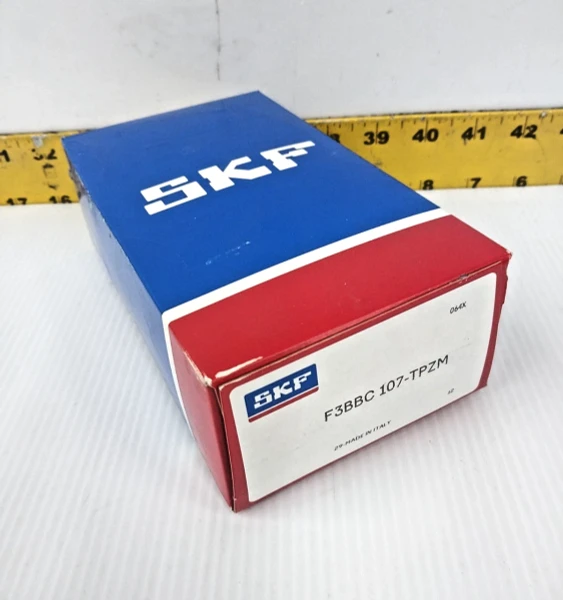

New SKF Three-Bolt Bracket Flanged Ball Bearing
Catalog # F3BBC 107-TPZM
**Factory Sealed**
Dimensions
Attachment bolt diameter 12.7 mm
Shaft diameter 36.513 mm
Housing overall width 36 mm
Bearing width, total 42.9 mm
Performance
Basic dynamic load rating 25.5 kN
Basic static load rating 15.3 kN
Limiting speed 3 200 r/min
Note Limiting speed with shaft tolerance h6
Properties
Housing type Flanged
Flanged housing type 3-bolt bracket
Number of bolt holes for fasteners 3
Fastening bolt hole type Plain
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rubber seating ring Without
Material, housing Composite for the SKF Food Line
Material, bearing Bearing steel
Coating Zinc-coated bearing
Sealing, bearing Seal and flinger on both sides
Sealing type Contact, gutter
Sealing, unit Optional end cover
Lubricant Grease
Relubrication hole Without
Grease fitting Without
Logistics
Product net weight 0.66 kg
eClass code 23-05-08-02
UNSPSC code 31171536
