Product Overview

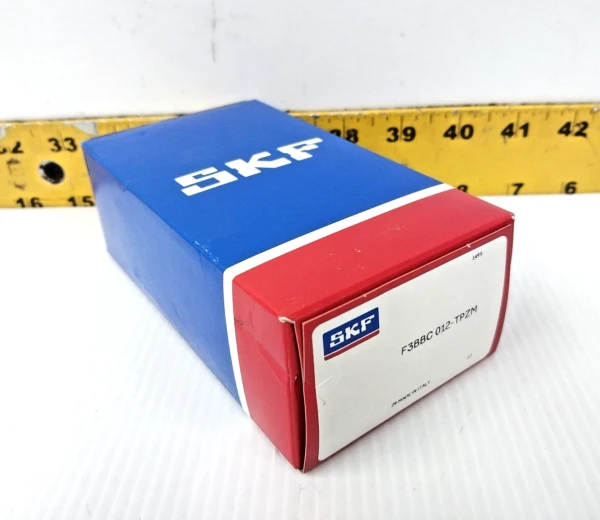

New SKF 3 Bolt Bracket Flanged Bearing
* 3/4" Bore
* Catalog # F3BBC 012-TPZM
**Factory Sealed**
Dimensions
Shaft diameter 0.75 in
Housing overall width 1.063 in
Bearing width, total 1.2205 in
Attachment bolt diameter 0.375 in
Performance
Basic dynamic load rating 2 855 lbf
Basic static load rating 1 472 lbf
Limiting speed 5 000 r/min
Note Limiting speed with shaft tolerance h6
Properties
Housing type Flanged
Flanged housing type 3-bolt bracket
Number of bolt holes for fasteners 3
Fastening bolt hole type Plain
Retaining feature, inner ring Set screws
Bore type Cylindrical
Rubber seating ring Without
Material, housing Composite for the SKF Food Line
Material, bearing Bearing steel
Coating Zinc-coated bearing
Sealing, bearing Seal and flinger on both sides
Sealing type Contact, gutter
Sealing, unit Optional end cover
Lubricant Grease
Relubrication hole Without
Grease fitting Without
Logistics
Product net weight 0.55 lb
eClass code 23-05-08-02
UNSPSC code 31171536
