Product Overview

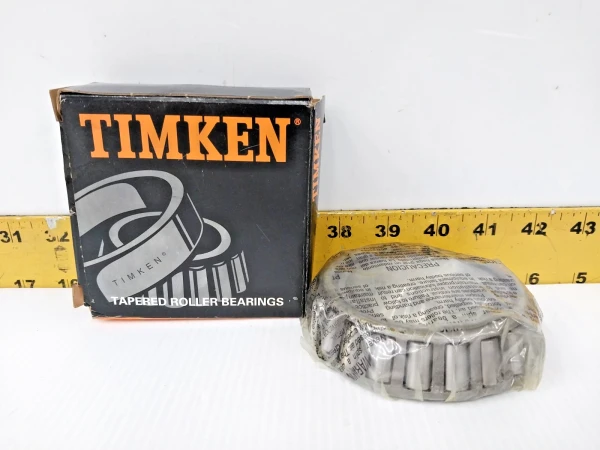

New Timken Tapered Roller Bearing
* 65mm Bore
* Catalog # JLM710949C
Other Dimensions
Weight
0.8 Kg1.7 lb
Inner Ring Width (B)
23.000 mm0.9055 in
Max Shaft Fillet Radius1 3.050 mm0.12 in
Shaft Backing Shoulder Diameter - Frontface (da)
72 mm2.83 in
Shaft Backing Shoulder Diameter - Backface (db)
78 mm3.07 in
Cage Location Relative to Frontface (Ab)
3.6 mm0.14 in
Cage Location Relative to Backface (Aa)
1 mm0.04 in
Effective Center Location2 -0.3 mm-0.01 in
Key Dimensions
Series
LM710900
Cone Part Number
JLM710949C
Bore (d)
65.000 mm2.5591 in
Dynamic Radial Load Rating - 90M Revs (C90) 3 33200 N7470 lbf
Dynamic Radial Load Rating - 1M Revs (C1) 4 128000 N28800 lbf
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)5 223000 N50200 lbf
Dynamic Radial Load Rating 2-Row - 90M Revs (C90-2row) 6 57900 N13000 lbf
K Factor 7 1.29
Ratings
Static Radial Load Rating (C0)
139000 N31300 lbf
Ca90 - Dynamic Thrust Rating (90 million revolutions)8 25800 N5810 lbf
Factors
G1 Factor
55.5
G2 Factor
22.4
Geometry Factor (Cg)9 0.102
