Product Overview

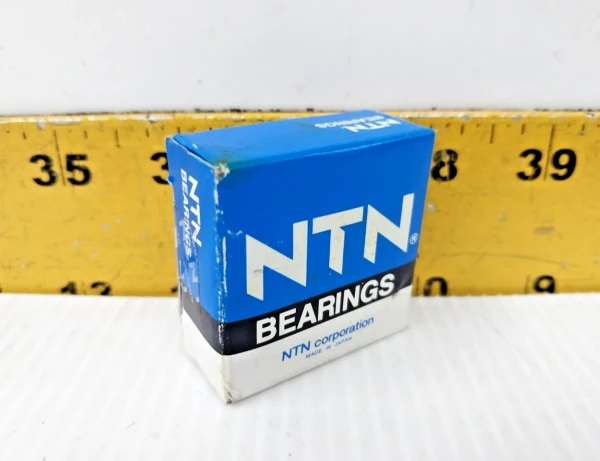

New NTN Double Row Angular Contact Ball Bearing
Catalog # 5202SCZZ/2AS
**Factory Sealed**
PRODUCT DEFINITION
Brand NTN
d - Internal diameter 15 mm
D - External diameter 35 mm
B - Bearing/Inner ring width 15,9 mm
a - Charge load application point 16,3 mm
α - Contact angle 25 °
rs - Min fillet radius 0,6 mm
Radial clearance class CN
Precision class P0
Mass 0,067 kg
PRODUCT PERFORMANCE
C - Dynamic load 8,5 kN
C0 - Static load 5,3 kN
Cu - Fatigue limit load 0,31 kN
N lim - Oil lubrication limit speed 17000 tr/min
N lim - Grease lubrication limit speed 13000 tr/min
Tmin - Min operating temperature -25 °C
Tmax - Max operating temperature 120 °C
ABUTMENT
da min - Min shoulder diameter IR 19 mm
da max - Max shoulder diameter IR 0 mm
Da max - Max shoulder diameter OR 31 mm
ra max - Max shaft & housing fillet radius 0,6 mm
Shipping Terms:
* If an item has free shipping it is to the 48 Continental U.S. states only. Hawaii, Alaska, and any island territories will be an additional charge.
* Items with "free shipping" are not free to return unless there was an error on our part or a defect in the item. All other returns will have the shipping cost deducted from the refund amount.
* Ebay shipping calculator is sometimes high so please message us if you would like us to check shipping cost for accuracy.
Flat Rate:
* Flat rate freight items are estimated to a non-residential business with a loading dock or forklift. If you're a residential (home based) business or need a liftgate there will be an additional charge. Please message us for more information.
Hours & Contact:
* C & G Surplus Inc. is open Monday to Thursday from 7am to 3pm and Friday from 7am to 10am.
* USPS picks up at 9am daily and UPS picks up at noon Mon-Thurs and 10am on Fri.
* If you have any questions, please feel free to message/email us or look us up on the web to get in touch with us.
* You may also pickup your item or setup your own freight for pickup at our warehouse in Camden, NJ.
Thank you for shopping with us at C & G Surplus Inc.!
