Product Overview

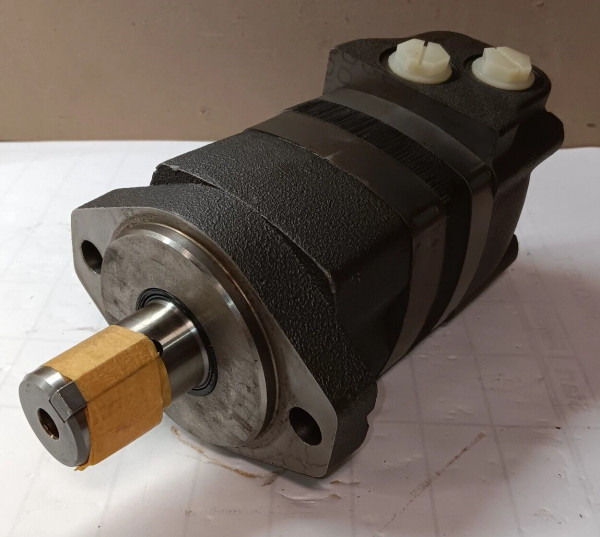

NEW EATON CHARLYNN
* MODEL- 1041022006
* 2-BOLT DISC GEROLER
Specifications
RPM [Min] 908 rpm
Seal Options Standard
Mounting Hole Size 0.535 in
Port Size & Location SAE-10 Side
Output Shaft Code 02
Motor Element Geroler
Flange Orientation Standard
Displacement (in³/rev) 4.9
Special Features Assembly Code 0
Output Torque at Rated PSI (inch/pounds) 2080 in lb
RPM [Max] 908 rpm
Case Drain 0.4375-20 UNF-2B SAE O-Ring Port
Duty Standard-Duty
Geroler Options Standard
Geroter/Geroler Options Standard
Splines 0
Accessories Code 00
Pressure [Max] 3000 psi
Output Shaft Type Straight
Seal Material Buna-N
Case Drain Code 01
Front Seal Kit If Available 61258-000
Shaft Type Straight
Port Size 7/8-14
Inlet Pressure [Max] 4500 psi
Port Code AA
Maximum Speed @ Continuous Flow 799 rpm @ 20 gal/min
Motor Type Disc Valve
Mount Type 2 Bolt
Port Type SAE O-Ring
Port Location Side Port, Staggered
Rotation Standard Rotation
Flow [Max] 20 gal/min
Shaft Size & Type 1 1/4 in x 5/16 in Straight
Bolt Circle Dia. 4.19 in
Torque 235 Nm
Recommended System Working Temperature [Max] 180 °F
Series 2000 Series
Material Cast Iron
Recommended System Working Temperature [Min] -30 °F
Special Features Hardware Code 00
Mounting Type Code AC
Mounting Holes 0.535 in
Pilot Diameter 3.25 in
Flow Rate 75 lpm
Corrosion Resistant No
Viscosity Recommendation 70 Saybold Universal Second
Displacement 80.6 cm3/Rev
Brake Type Hydraulic
Paint/Packaging Individual Box
Design Code 6
Paint Code 0
Intermittent Pressure [Max] 310 bar
Weight 42.0 LB
IF THE ITEM HAS FREE SHIPPING IT IS TO THE LOWER 48 CONTINENTAL US STATES ONLY. IT DOES NOT INCLUDE HAWAII, ALASKA, PUERTO RICO, GUAM, OR ANY OTHER US ISLAND TERRITORIES. THERE WILL BE AN ADDITIONAL SHIPPING CHARGE FOR ANY OF THESE LOCATIONS. PLEASE MESSAGE US FOR INFO ON SHIPPING TO THESE LOCATIONS.
ALSO PLEASE BE AWARE THAT ITEMS WITH FREE SHIPPING ARE NOT FREE TO RETURN UNLESS IT IS DUE TO AN ERROR ON OUR PART OR A DEFECT ON THE ITEM. ALL OTHER RETURNS WILL HAVE THE SHIPPING COST DEDUCTED FROM THE REFUND AMOUNT.
EBAY SHIPPING QUOTES TEND TO BE VERY HIGH. IF THE SHIPPING QUOTE SEEMS HIGH, PLEASE EMAIL US AND WE WILL PROVIDE YOU WITH AN ACCURATE SHIPPING QUOTE.
IF YOU GET A MESSAGE FROM EBAY STATING THAT YOU CAN NOT PURCHASE THIS ITEM BECAUSE SELLER HAS NOT SPECIFIED SHIPPING COST. PLEASE CONTACT US FOR A SHIPPING COST AND WE CAN SEND YOU AN OFFER TO PURCHASE THE ITEM.
SEE PHOTOS ABOVE FOR DETAILS AND ITEM SPECS
