Product Overview

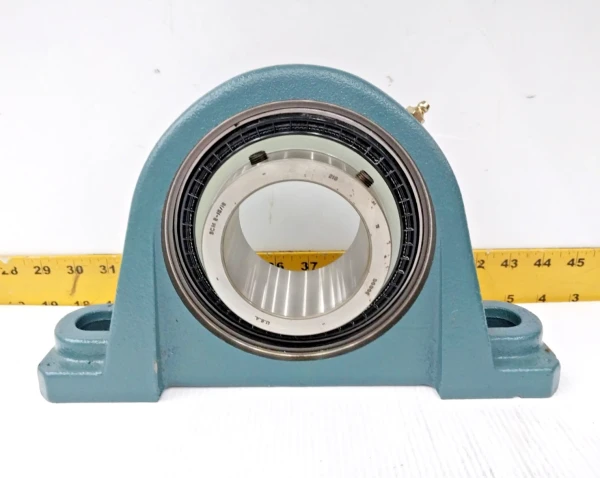

New Dodge 2 Bolt Pillow Block Bearing
* 2-15/16" Bore
* Catalog # P2B-SCM-215
* Dodge Part # 126821
**New No Box With Very Minor Shelf Wear, See Photos.**
Dimensions
*
Base To Bore Centerline
3.5000 in
*
Bolt Center Diameter
0.8750 in
*
Bolt Center To Center Length
8.5000 to 9.5000 in
*
Bore Diameter
2-15/16 in
*
Bore Length
2.38 in
*
Take Up Frame Size
LD-50,TS-400
*
Weight
21.3 lbs
Details
*
Bearing Series
216 Series
*
Country of Origin
US
*
Duty Type
Medium Duty
*
Dynamic Load Capacity
17407 lbf
*
Expansion Type
Non-Expansion Bearing (Fixed)
*
Grease Type
Unirex N2
*
Housing Construction
Solid
*
Housing Material
Cast Iron
*
Housing Type
Two-Bolt Pillow Block
*
Insert Material
Steel
*
Locking Device
Set Screw
*
Locking Type
Set Screw
*
Lubrication
Grease
*
Manufacturer Catalog Number
126821
*
Max Rpm
1000 rpm
*
Maximum Speed
1000 rpm
*
Mounting Type
2-Bolt Base
*
Number Of Mounting Holes
2
*
Product Type
Pillow Block Ball Bearing Units
*
Radial Dynamic Load Capacity
17407 lbf
*
Radial Static Load Capacity
13102 lbf
*
Relubricatable
Yes
*
Seal Type
Single Lip Contact
*
Sealing Type
Single-Lip Contact
*
Sensor Ready
Adapter Required
*
Shaft Attachment
Setscrew
*
Standoff Included
No
*
Static Load Capacity
13102 lbf
*
Suitable For High Temp App
No
*
Suitable For Washdown Environment
No
*
Type Of Bearing
Ball Bearing
*
UPC_NO
782475116393
